中茂 Chroma PXI 量測解決方案
2015-08-12
中茂 Chroma PXI 量測解決方案是一種改良自Compact PCI的工業平臺規范(PCI eXtensions for Instrumentation)。傳統的Compact PCI平臺是將標準計算機內PCI Bus的電氣規格擴充為適合在高溫多震的工業環境中使用的工業級計算機(IPC)，而中茂 Chroma PXI 量測解決方案除了延續Compact PCI平臺模塊化、開放架構、支持熱插拔、堅固耐用的特色外，還具有更高速的網絡傳送、內建計時、及同步觸發的數據擷取傳輸接口。中茂 Chroma PXI 量測解決方案將這些優點發展于測試儀器及系統上，即使采用不同平臺的儀器，也因?yàn)榧嫒莸能浖c硬件技術而輕易整合至PXI的測試系統中。中茂 Chroma PXI 量測解決方案以模塊化卡片取代單機、以機箱取代傳統的系統后，不但設備空間大為精簡，量測功能的組合更為多樣，對于現今電子產品升級迅速、生命周期縮短的變化，也能以其彈性化架構及高效能低成本的優勢因應之，目前中茂 Chroma PXI 量測解決方案已經成功的廣泛應用在汽車測試、半導體測試、航空及軍事設備測試上。長沙艾克賽普儀器設備有限公司是中茂 Chroma 在華中地區授權代理商，可提供樣機和相關工程師上門演示溝通，以下是長沙艾克賽普儀器設備有限公司為您介紹中茂 Chroma PXI 量測解決方案的系列產品,如果您有任何問題或者需要相關資料，請隨時聯系：0731-84284278轉801，郵箱：shawn.xiao@hncsw.net。
PXI 半導體/IC 測試系統

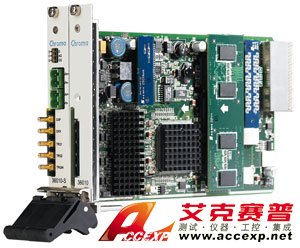

- Model 36010 可程控邏輯腳位模塊
- 100 MHz programmable pin electronic module designed for charactering and testing digital & mixed-signal IC
- 100 MHz maximum test rate
- Scalable architecture to provide up to 64 pins
- Per Pin TMU, TMU, and level/timing setting
- 32M vector memory, with scan support

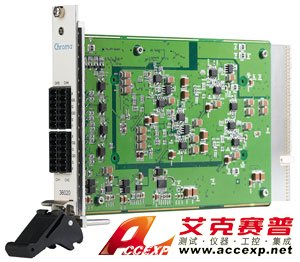

- Model 36020 直流電源供應模塊
- Programmable DUT power supply in a single slot 3U PXI module
- 4 Channels in standard PXI 3U/PXIe-Hybird compatible bus type
- +5/-2V and +10V/-2V force ranges
- 16-bits VF and 18-bits IM resolution
- 6 selectable ranges from 5uA to 250mA, with ganged function support
一般PXI 設備

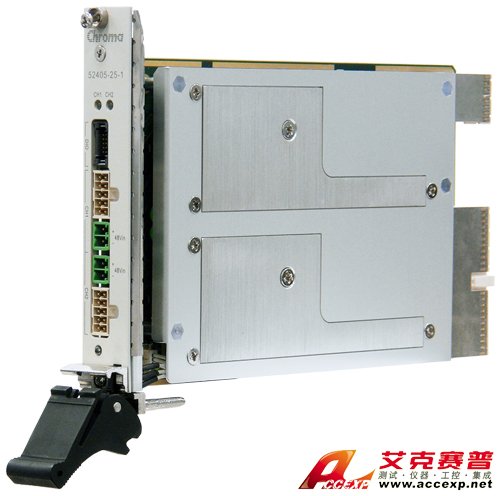

- Model 52400 series 高精準電源量測單元
- Applications: Semiconductor Test / LED Test/ Battery Test / Laser Diode Test / Transistor Test/ RF IC Test.
- High Source/Measurement Resolution (by Multiple Ranges)
- Low Output Noise
- High Programming/Measurement Speed (100k s/S) & Slew Rate
- Output Profiling by Hardware Sequencer

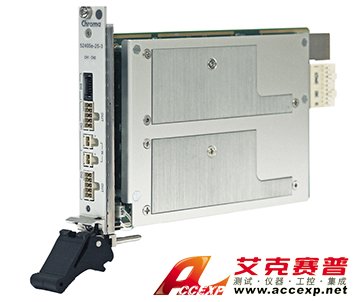

- Model 52400e series 高精準電源量測單元
- Applications: Semiconductor Test / LED Test/ Battery Test / Laser Diode Test / FET Test.
- PXI Express Peripheral Module (X1 PCI Express Link)
- 18-bit source/measure resolution (multiple selectable ranges)
- High measurement speed (100k s/S)
- Output profiling by hardware sequencer

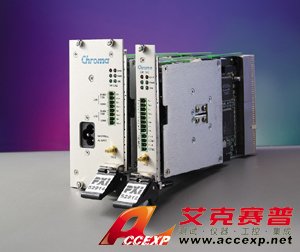

- Model 52912/52914 PXI 可程式直流電源供應器
- Dual Isolated outputs; 0-48VDC/ 0~2A/60W, programmable
- Choice of DC or AC Input Supply
- High Speed Instrument Sequencer (HSIS#) functionality
- Outputs May Be Connected in Parallel or Series

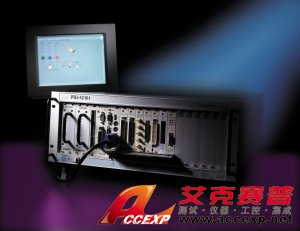

- Model 52100 series 通用型機箱
- Accepts both 3U PXI and CompactPCI modules
- Filtered, forced-air cooling, and Hot swapping power supply
- Compliant with PXI Specification
- Optional DC ( 24V/ 48V ) input configuration available

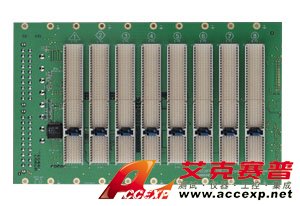

- Model 52200 series PXI背板
- Compliant With PXI Specification
- Accepts Both PXI and CompactPCI (PICMG 2.0 R3.0) 3U Modules
- 64-Bit PCI BUS On P1 & P2, Supports N-1 BUSMastering I/O Slots. (N : Slots)

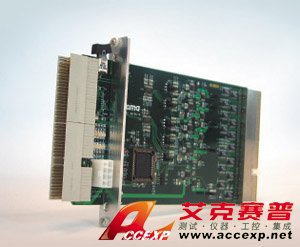

- Model 52906 PXI延伸卡 ( PXI Extension Card )
- Extend PXI backplane signals, Extend PXI BUS to outside of chassis, easy for inspection
- 3U 64-bit PXI extension card available for hot swapping PXI card
- Provide short circuit protection
- Able to use voltage meter to measure the power consumption of +5V, +3.3V, +12V,-12V and VIO

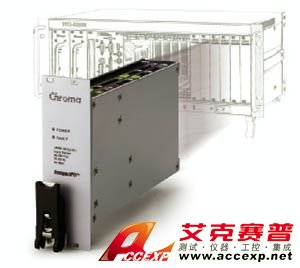

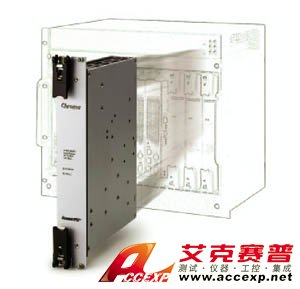

- Model cPWR-59100 series 3U 工業電腦用熱插拔電源供應器
- Eurorack-compatible Module Design, Input: 100V ~ 240Vac, 18V ~ 36Vdc
- Hot-swappable, N+1 Redundant
- Compliant with PICMG 2.11, and worldwide Safety Approval including UL, CSA, CE Marking
- Model cPWR-59400 series 6U高度 工業電腦用熱插拔電源供應器
- Eurorack-compatible Module Design, Input: 100V ~ 240Vac
- Hot-swappable, N+1 Redundant
- Compliant with PICMG 2.11, and worldwide Safety Approval including UL, CSA, CE Marking
PXI LED 測試系統

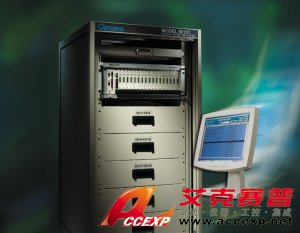

- Model 58131 OLED 壽命周期測試系統
- Test for electrical characteristic and brightness
- Thermoelectric cooler controller function (optional)
- Advance OLED life time prediction algorithm
