美國 Meriam MFT 4000, 4005, 4010系列RTD測量和模擬模塊的詳細介紹

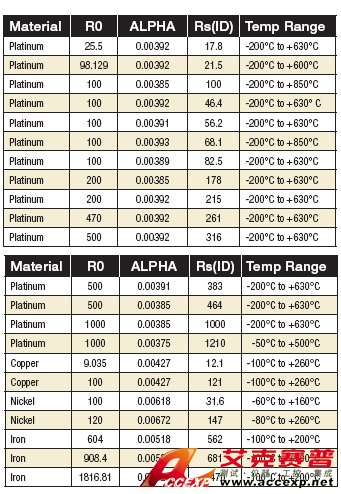

The RIO4000 is the RTD measure and simulate module for the Meriam MFT 4000 Series Multi-Function Tester. The module accurately measures or simulates the resistance of 22 different RTD sensor types with nominal resistance to 4000 ohms. 2-, 3-, and 4-wire RTDs are supported for various RTD types; platinum, copper, nickel or iron. Common alpha coefficients are supported per Table 1. The module can simulate temperature to all conventional or smart temperature transmitters and signal conditioners. The MFT converts measured resistance to a corresponding temperature value and displays the value in the user-selected temperature unit (°F, °C, °R or °K). Ohms can also be displayed for direct reading or troubleshooting. Pt 100 RTD probes are available from Meriam for use with the module. The Meriam RTD probes are 4-wire, DIN Class A probes, which come complete with handle, 5’ coiled cable and connector. Accessory connectors are available to connect to any RTD or temperature transmitter for measurement or simulation applications. The RTD Simulation mode can be setup by entering a specific temperature or a range of temperatures for stepping and ramping functions.
Ordering InformationRIO4000-11-1 RTD Measure/Simulate Module
Accessories
ZA900028-90200 Connector solders to a customer’s RTD wiring to facilitate connection to the RIO4000 module
ZA900028-90201 Pt 100 RTD, DIN Class “A”, 0.00385 alpha, 4 leads, ¼” O.D., 304SS probe, 10” probe length, 3.5” handle and 5 ft coiled cable with connector for RIO4000 module.
ZA900028-90500 Measure Cable to connect the RIO4000 module to RTD wires or transmitter terminals. Used for Measure Mode only. (Do not use for Simulation Mode) (Rs= 0.0 Ohms)
ZA900028-90502 2-Wire simulation cable. (Rs = 7.5 Ohms)
ZA37063 RTD Starter Kit; includes A900028-90200/-90500/-90502
