美國 Meriam MFT 4000, 4005, 4010系列熱電偶測量和模擬模塊
名稱：過程校準儀
品牌：
型號：
簡介：美國 Meriam MFT 4000, 4005, 4010系列熱電偶測量和模擬模塊的詳細介紹 The TIO0110 is a thermocouple (T/C) measurement and simulation module fo...
申請服務
- 產品介紹
美國 Meriam MFT 4000, 4005, 4010系列熱電偶測量和模擬模塊的詳細介紹

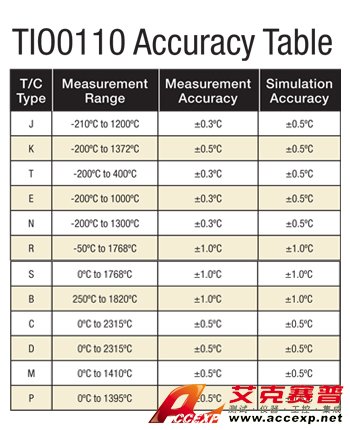

The TIO0110 is a thermocouple (T/C) measurement and simulation module for use with the Meriam MFT 4000 Series Multi-Function Tester. The module will accurately measure or source ±110 milli-Volts (mV) for any of twelve (12) different T/C types according to NIST 175, ITS-90 (default) or ITS-68 standards. In the measure mode, the TIO0110 module converts mV dc to a temperature value in the user-selected temperature unit (°F, °C, °R or °K) and per the selected standard. Milli-volts can also be displayed for direct reading or trouble shooting needs. In the simulate mode, the TIO0110 module simulates an accurate mV signal to a receiving device. Users can enter the precise simulation temperature value, change the value with convenient controls on the MFT, or set-up and select from three Auto-Step or three Auto Ramp test procedures per T/C type. Test points are determined by the user and can be stepped through automatically or manually as desired. See T/C Table 1 below for available T/C types and measurement / simulation accuracy.
T/C calibration coefficients are factory loaded into module memory for instant access by the base MFT. Field recalibration of the module is possible using the MFT’s “Rcal” feature (appropriate calibration standards are required).
Accessories
ZA37062 TIO 0110 Starter Kit (Includes t/c wire kits for types E, J, K, N, T, BK and R/S plus mV cable.)
