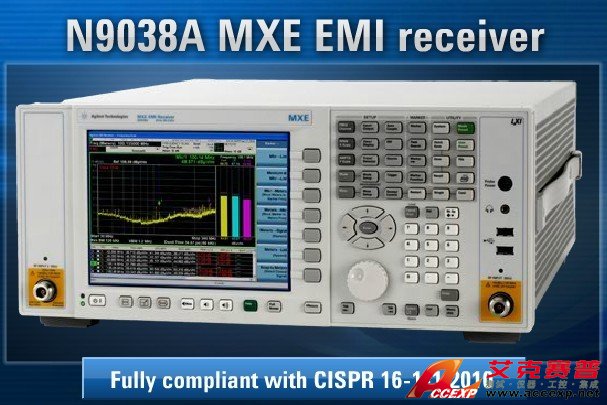

安捷倫 N9038A MXE EMI 接收機
名稱：頻譜分析儀
品牌：
型號：
簡介：無論您的產品是用于信息技術、汽車、通信、醫療電子設備，還是其它應用領域，您都必須評估這些產品的EMI性能。用Agilent EMI/EMC N9038A MXE EMI 接收機測試系統和附件，幫助保證您的產品符合監管機構的極限要求。CISP...
申請服務
- 產品介紹
無論您的產品是用于信息技術、汽車、通信、醫療電子設備，還是其它應用領域，您都必須評估這些產品的EMI性能。用Agilent EMI/EMC •N9038A MXE EMI 接收機測試系統和附件，幫助保證您的產品符合監管機構的極限要求。CISPR 一致性 EMI 接收機具有兩種頻率范圍：20 Hz ～ 8.4 GHz 和 20 Hz ～ 26.5 GHz。MXE 同時具備 EMI 接收機和 X 系列信號分析儀的雙重功能，可以運行各種測量應用軟件并隨著技術變化而不斷發展。
Combine passive and active load pull techniques for cost-effective multi-harmonic impedance matching
Load pull measurements are used to study the response of a device-under test (DUT) under multiple source and load impedances.
Passive load pull measurements utilize a mechanical tuner to vary the impedance seen by the DUT whereas active load pull uses an external source to inject a signal into the output of the DUT to emulate a reflected signal.
Hybrid load pull uses a combination of these techniques. A mechanical tuner is used to handle the high power levels at the fundamental frequency while a signal source is used for the lower power harmonic frequencies.
Maury Microwave provides a range of passive, active and hybrid load pull solutions that incorporate test instruments from Agilent Technologies, including the PNA-X microwave network analyzer. By utilizing the advanced features of the Agilent PNA-X, Maury Microwave can provide cost-effective active and hybrid load pull systems to allow you to optimize the performance of your large signal, high power devices.
