Agilent M9392A PXI頻譜信號分析儀
名稱：頻譜分析儀
品牌：
型號：
簡介：Agilent M9392A PXI頻譜信號分析儀is a PXI Vector Signal Analyzer with frequency coverage from 50 MHz to 26.5 GHz with 250 MHz of...
- 產品介紹

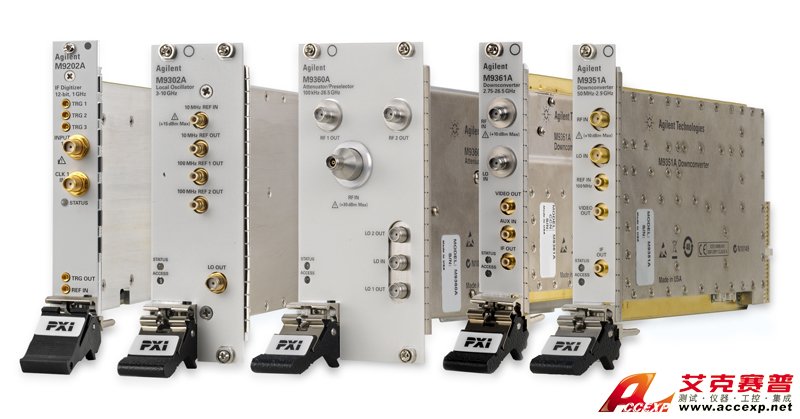

Agilent M9392A PXI頻譜信號分析儀is a PXI Vector Signal Analyzer with frequency coverage from 50 MHz to 26.5 GHz with 250 MHz of instantaneous bandwidth. Agilent M9392A PXI頻譜信號分析儀iwhen combined with the Agilent 89600 VSA software, provides a complete Microwave Vector Signal Analyzer solution enabling analysis of communications, radar, and avionics signals in a modular, open-system standard. TheM9392A PXI Vector Agilent M9392A PXI頻譜信號分析儀iSignal Analyzer system consists of the M9202A PXIe IF Digitizer, M9302A PXI Local Oscillator, M9360A PXI Attenuator/Preselector, and the M9361A and M9351A PXI Downconverter Modules.
• Measurement Expertise: Benefit from the Agilent 89600 Vector Signal Analysis software to characterize complex, time-varying signals with detailed and simultaneous spectrum, modulation and time waveform analysis
• Simple: Single vendor solution facilitates integration and simplifies technical support
• Open Standard: Modular and software-defined building blocks provide flexible system configurations to meet diverse test needs. Agilent M9392A PXI頻譜信號分析儀iConnector compatibility allows easy integration with other test and automation modules in PXIe Hybrid chassis, and the PXI form-factor conforms to government requirements for modular system design
• Fast: Reduced development time enabled with included drivers, soft front panels and programming examples in Visual Studio® (VB.NET, C#, C/C++) VEE, LabVIEW, LabWindows/CVI, MATLAB
Agilent M9392A PXI頻譜信號分析儀i主要技術指標
Applications
• Aerospace and Defense
• Wireless communications
• Radar and wideband signal capture
Functionality
• Frequency range: 50 MHz to 26.5 GHz
• Modular and software-defined building blocks provide flexible system configurations to meet diverse test needs
• Reduced development time enabled with included drivers, soft front panels and programming examples in Visual Studio® (VB.NET, C#, C/C++) VEE, LabVIEW, Lab Windows/CVI, MATLAB
Performance characteristics
• 250 MHz bandwidth
• 2GS/s sample rate
• 7 or 8 slot-wide multiple modules
