Fluke 85RF 高頻探頭
名稱：儀器附件及傳感器
品牌：
型號(hào)：
簡介：Fluke 85RF 高頻探頭
- 產(chǎn)品介紹

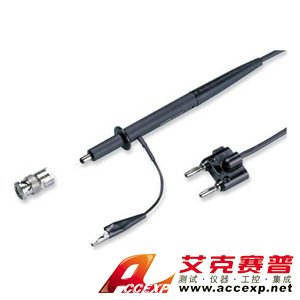

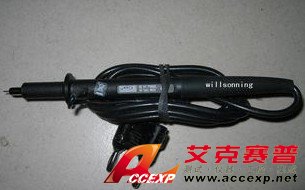

Fluke 85RF 高頻探頭

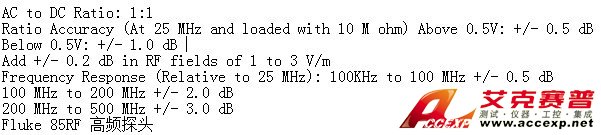

The 85RF High Frequency Probe is designed to convert a DC voltmeter with a input impedance of 10M ohms into a high frequency (100kHz to 500Mhz) RF voltmeter. Conversion from AC to DC is accomplished on a one-to-one basis includes a range of 0.25 to 30V rms. The probe’s DC output is calibrated to be equivalent to the rms value of a sine wave input.
Voltage Range: 0.25 to 30V rms
Maximum Input Voltage: 30V rms, 200V dc
The 85RF High Frequency Probe is designed to convert a DC voltmeter with a input impedance of 10M ohms into a high frequency (100kHz to 500Mhz) RF voltmeter. Conversion from AC to DC is accomplished on a one-to-one basis includes a range of 0.25 to 30V rms. The probe’s DC output is calibrated to be equivalent to the rms value of a sine wave input.
Voltage Range: 0.25 to 30V rms
Maximum Input Voltage: 30V rms, 200V dc
