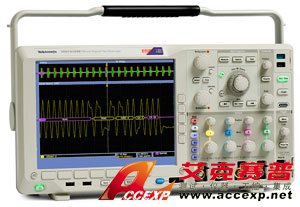

Tektronix MSO4054B示波器
名稱：示波器
品牌：
型號：
簡介：Tektronix MSO4054B示波器：500MHz，四通道，2.5GSa/s，10M/CH，10.4XGA顯示，波形巡檢功能，帶邏輯分析通道。 Tektronix MSO4054B示波器擁有高達1 GHz的帶寬和5 GS/s的采樣率，...
申請服務
- 產品介紹
Tektronix MSO4054B示波器：500MHz，四通道，2.5GSa/s，10M/CH，10.4"XGA顯示，波形巡檢功能，帶邏輯分析通道。
Tektronix MSO4054B示波器擁有高達1 GHz的帶寬和5 GS/s的采樣率，為查看快速變化的信號細節提供了所需的性能。Tektronix MSO4054B示波器多達20條通道可以同時分析模擬信號、數字信號和串行信號。Tektronix MSO4054B示波器加上自動串行和并行總線分析、創新的Wave Inspector®控制功能和自動電源測量功能，Tektronix MSO4054B示波器簡化了加快復雜設計的調試工作。
| Vertical System Analog Channels | |||
| Input Channels |
Analog Bandwidth (–3 dB) 5mV/div - 1V/div: |
500 MHz | |
| Calculated Rise Time 5 mV/div (typical): |
700ps | ||
| Hardware Bandwidth Limits | 20 MHz or 250 MHz | ||
| Input Coupling | AC, DC | ||
| Input Impedance | 1 MΩ ±1%, 50 Ω ±1% | ||
| Input Sensitivity, 1 MΩ | 1 mV/div to 10 V/div | ||
| Input Sensitivity, 50 Ω | 5 VRMS with peaks < ±20 V | ||
| Vertical Resolution | 8 bits (11 bits with Hi Res) | ||
| Max Input Voltage, 1 MΩ | 300 VRMS CAT II with peaks ≤ ±425 V | ||
| Max Input Voltage, 50 Ω | 5 VRMS with peaks < ±20 V | ||
| DC Gain Accuracy | ±1.5%, derated at 0.10%/°C above 30°C | ||
| Channel-to-Channel Isolation |
≥100:1 at ≤100 MHz and ≥30:1 at >100 MHz up to t he rated bandwidth for any two channels having equal volts/div settings |
||
| Offset Range | |||
| Range | 1MΩ | 50Ω | |
| 1mV/div to 50mV/div | ±1V | ±1V | |
| 50.5 mV/div to 99.5 mV/div | ±0.5V | ±0.5V | |
| 100 mV/div to 500 mV/div | ±10V | ±10V | |
| 505 mV/div to 995 mV/div | ±5V | ±5V | |
| 1 V/div to 5 V/div | ±100V | ±5V | |
| 5.05 V/div to 10 V/div | ±50V | n/a | |
| Vertical System Digital Channels | |||
| Input Channels | 16 Digital (D15 - D0) | ||
| Thresholds | Per-channel Thresholds | ||
| Threshold Selections | TTL, CMOS, ECL, PECL, User Defined | ||
| User-defined Threshold Range | ±40V | ||
| Maximum Input Voltage | ±42Vpeak | ||
| Threshold Accuracy | ±(100 mV + 3% of threshold setting) | ||
| Input Dynamic Range | 30 Vp-p ≤200 MHz 10 Vp-p >200 MHz |
||
| Minimum Voltage Swing | 400 mV | ||
| Input Impedance | 100 kΩ | ||
| Probe Loading | 3 pF | ||
| Vertical Resolution | 1 bit | ||
| Horizontal System Analog Channels | |||
| Maximum Sample Rate (All channels) | 2.5 GS/s | ||
| Maximum Record Length (All channels) | 20M points | ||
| Maximum Duration at Highest Sample Rate (All channels) | 8 ms | ||
| Time Base Range | 1ns to 1,000 s | ||
| Time Base Delay Time Range | –10 divisions to 5000 s | ||
| Channel-to-Channel Deskew Range | ±125 ns | ||
| Time Base Accuracy | ±5 ppm over any ≥1 ms interval | ||
| Horizontal System Digital Channels | |||
| Maximum Sample Rate (Main) | 500 MS/s (2 ns resolution) | ||
| Maximum Record Length (Main) | 20M points | ||
| Maximum Sample Rate (MagniVu) | 16.5 GS/s (60.6 ps resolution) | ||
| Maximum Record Length (MagniVu) | 10k points centered around the trigger | ||
| Minimum Detectable Pulse Width (Typical) | 1ns | ||
| Channel-to-Channel Skew (Typical) | 200 ps | ||
| Maximum Input Toggle Rate | 500 MHz | ||
| Maximum frequency sine wave that can accurately be reproduced as a logic square wave. Requires the use of a short ground extender on each channel. | |||
| This is the maximum frequency at the minimum swing amplitude. Higher toggle rates can be achieved with higher amplitudes | |||
