Tektronix DPO5034示波器
名稱：示波器
品牌：
型號：
簡介：Tektronix DPO5034示波器4條模擬通道和16條數字通道 在一臺儀器上分析模擬信號和數字信號，在系統級調試復雜的設計。 泰克專有的FastAcq技術，迅速發現毛刺和偶發事件。250,000波形/秒的最大捕獲速率，快速顯示難檢異常...
申請服務
- 產品介紹

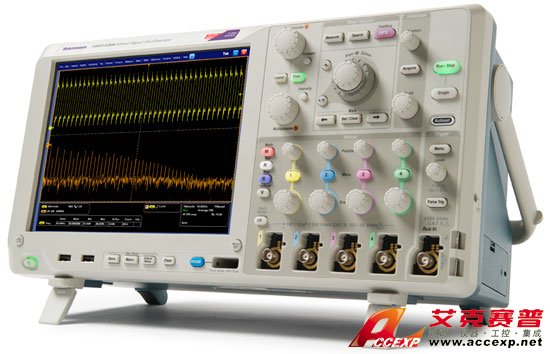

Tektronix DPO5034示波器4條模擬通道和16條數字通道
在一臺儀器上分析模擬信號和數字信號，在系統級調試復雜的設計。
泰克專有的FastAcq™技術，迅速發現毛刺和偶發事件。>250,000波形/秒的最大捕獲速率，快速顯示難檢異常事件。
Tektronix DPO5034示波器350多種觸發組合，包括建立時間/保持時間觸發、串行數據包觸發和并行數據觸發，迅速捕獲異常信號。
簡便地搜索、標記和導航長記錄長度，找到事件發生的所有時點。
Tektronix DPO5034示波器53種自動測量、測量統計、直方圖和高級波形數學運算，分析設備。
自動觸發、解碼和搜索功能，迅速調試并行總線。高達60.6 ps的定時分辨率，捕獲快速跳變。
自動觸發、解碼和搜索功能，迅速調試常見串行總線– I2C, SPI, RS-232/422/485/UART, USB2.0。
Tektronix DPO5034示波器標配抖動和眼圖分析及十幾種電源分析、存儲器分析等選配軟件包，把示波器轉換成專用應用儀器。
Tektronix DPO5034示波器標配4只探頭，提供了業內最佳的4pF電容負荷，保證準確測量。
| Vertical System Analog Channels | |||
| Input Channels |
Analog Bandwidth (–3 dB) | 350 MHz | |
| Calculated Rise Time | 1 ns | ||
| DC Gain Accuracy | ±1.5%, derated at 0.10%/°C above 30°C | ||
| Bandwidth Limits | Depending on instrument model: 1GHz, 500MHz, 350MHz, 250MHz, and 20MHz | ||
| Input Coupling | AC, DC | ||
| Input Impedance | 1 MΩ ±1%, 50 Ω ±1% | ||
| Input Sensitivity | 1 MΩ: 1 mV/div to 10 V/div 50 Ω: 1 mV/div to 1 V/div |
||
| Vertical Resolution | 8 bits (11 bits with Hi Res) | ||
| Max Input Voltage, 1 MΩ | 300 VRMS CAT II, with peaks ≤ ±425 V For <100 mV/div derate at 20 dB/decade above 100 kHz to 30 VRMS at 1 MHz, 10 dB/decade above 1 MHz For ≥100 mV/div derate at 20 dB/decade above 3 MHz to 30 VRMS at 30 MHz, 10 dB/decade above 30 MHz |
||
| Max Input Voltage, 50 Ω | 5 VRMS, with peaks ≤ ±20 V | ||
| Position Range | ±5 divisions | ||
| Delay between any Two Channels (Typical) |
≤100 ps (50 Ω, DC coupling and equal V/div at or above 10 mV/div) | ||
| Offset Range | |||
| Range | 1MΩ | 50Ω | |
| 1mV/div to 50mV/div | ±1V | ±1V | |
| 50.5 mV/div to 99.5 mV/div | ±0.5V | ±0.5V | |
| 100 mV/div to 500 mV/div | ±10V | ±10V | |
| 505 mV/div to 995 mV/div | ±5V | ±5V | |
| 1 V/div to 5 V/div | ±100V | ±5V | |
| 5.05 V/div to 10 V/div | ±50V | n/a | |
| Offset Accuracy | ±(0.005 x |offset – position| + DC Balance) Note: Both position and constant offset term must be converted to volts by multiplying by the appropriate volts/div term |
||
| Channel-to-Channel Isolation (Any two channels at equal Vertical Scale settings) (Typical) |
≥100:1 at ≤100 MHz and ≥30:1 at >100 MHz up to the rated BW | ||
| Horizontal System Analog Channels | |||
| Maximum Sample Rate (All channels) | 5 GS/s | ||
| Maximum Record Length (All channels) | Standard Config. | 12.5M points | |
| With Option 2RL | 25M | ||
| With Option 5RL | 50M | ||
| With Option 10RL | 125M | ||
| Maximum Equivalent Time Sampling Rate | 400 GS/s | ||
| Maximum Duration at Highest Sample Rate | 25 ms | ||
| Time Base Range | 250 ps/div to 1000 s/div | ||
| Time Resolution (in ET/IT mode) | 2.5 ps/div | ||
| Time Base Delay Time Range | –5 divisions to 5000 s | ||
| Channel-to-Channel Deskew Range | ±75 ns | ||
| Time Base Accuracy | ±5 ppm over any ≥1 ms interval | ||
| Trigger Jitter (RMS) | ≤10 psRMS for Edge trigger type ≤100 psRMS for all Non-edge trigger types |
||
