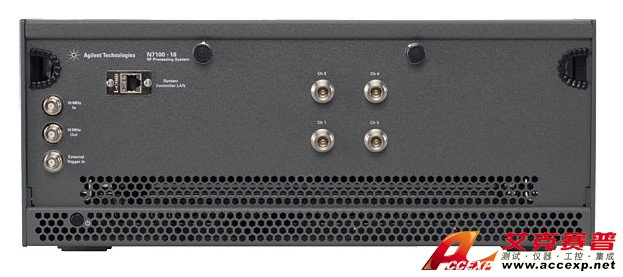

Agilent N7109A 頻譜信號分析儀
名稱：頻譜分析儀
品牌：
型號：
簡介：Agilent N7109A 頻譜信號分析儀with the MIMO capabilities of the industry-leading Agilent 89600B vector signal analysis (VSA) sof...
申請服務
- 產品介紹
Agilent N7109A 頻譜信號分析儀with the MIMO capabilities of the industry-leading Agilent 89600B vector signal analysis (VSA) software. The system enables fast, informative measurements of devices that range from 2x2 to 4x4—and leaves room for future evolution beyond four channels.
Agilent N7109A 頻譜信號分析儀is implemented in the PXI® Express format. You can configure a system with one or two N7130A two-channel receiver modules that provide 40 MHz analysis bandwidth from 20 MHz to 6 GHz. Each channel includes a built-in preamp and multiple fixed pre-selectors, which enable and optimize off-the-air measurements.
AgilentN7109A 頻譜信號分析儀Processing power comes from the N7140A CPU module and the N7145A FPGA processing module. These combine to deliver onboard data reduction, fast measurements and, with the Gigabit Ethernet PC link, rapid data transfers.
Agilent N7109A 頻譜信號分析儀This all fits into a 19-inch N7125A mainframe that’s rack mountable and just 4U high. We also include a front cover that simplifies signal connections and provides additional RF shielding.
Agilent N7109A 頻譜信號分析儀主要技術指標
•Analysis bandwidth: Wide range of choices with 40 MHz maximum
• Error vector magnitude: Better than -43 dBm to -47 dBm depending on signal types
• Displayed average noise level (DANL): -158 dBm/Hz
• Third-order intermodulation (TOI) distortion: +12 dBm
• Third-order dynamic range: <-70 dBc
• Phase noise: -98 dBc/Hz @ 10 kHz; -115 dBc/Hz @ 1 MHz
• Amplitude accuracy: ± 0.25 dB @ 1 GHz; ± 0.5 dB @ 6 GHz
• Time capture memory: 132 Msamples
